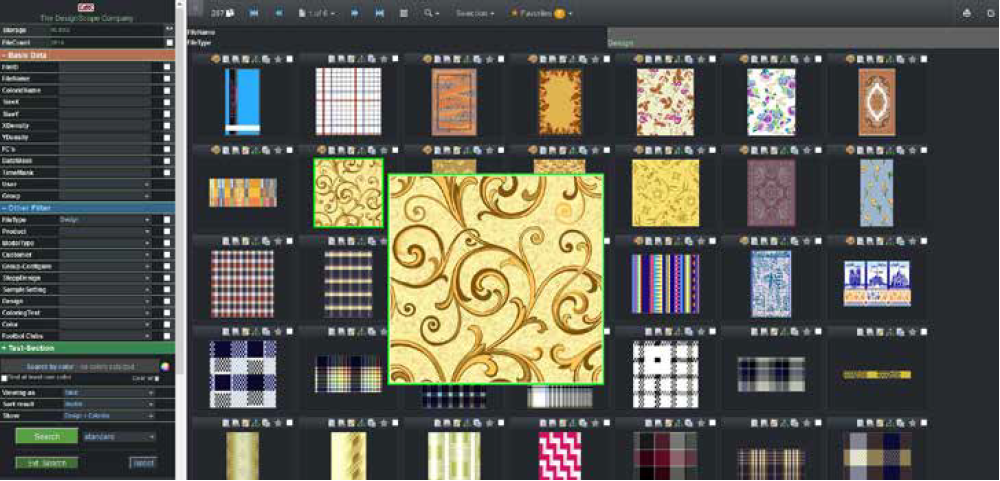

DESIGNBASE VICTOR DATABASE SYSTEM

DesignBase victor is an image/archive multiuser database software system made by EAT. The system – in addition to the EAT format – is able to administrate the standard formats TIFF, BMP, JPEG and the main design formats of other textile CAD/CAM systems.

• Data access can be granted on different levels, categories, attributes and with different restrictions for specific users or groups
• The designs can be displayed in different forms, like overview, detail view or repeated view for example
• Colouring the files in the DesignBase without reopening them in the design system
• Customized input masks or documentation sheets with all necessary information of the design are no problem

A NEW REALITY - The new 3D Real Simulation

EAT's completely new fabric simulation allows the visualization of fabrics, including the ability to move, zoom and also penetrate the simulated fabric and view the reverse side.

A key component of the new simulation is the YarnCreator, the individual construction kit for yarns - from simple to complex. This allows users to work with their own yarn palette closer to reality than ever before. My Yarn. My Fabric. My Reality.

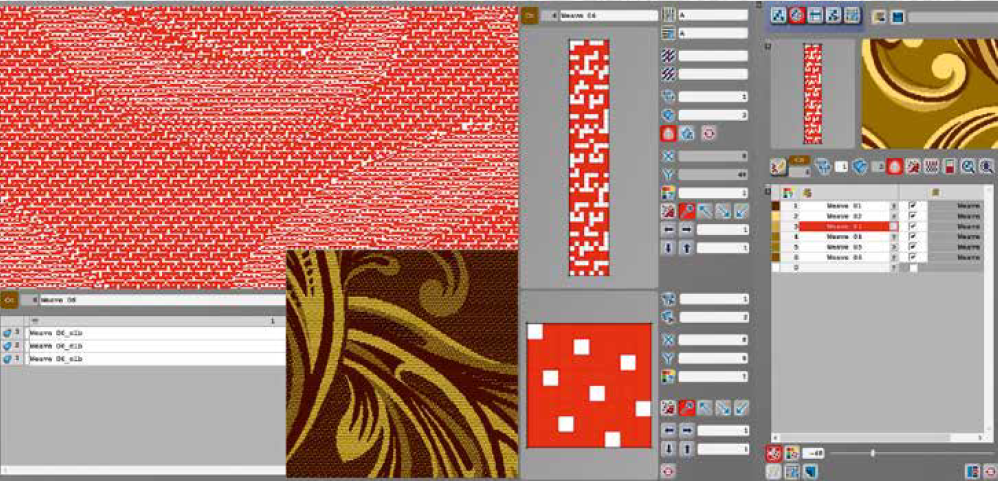

PROCESSING SOFTWARE FOR WEAVING

Jacquard Processing defines and compiles the complete working process from designs edited in Scope all the way to the control information for the Jacquard weaving machine.

• BoxMotion to define the different selectors for the weaving process
• Assign weaves to colour, possible in different colour modes
• Flexible float control
• Defining different selvedge weaves for any kind of fabric
• Convert the jacquard files into the specific machine formats, like Stäubli JC4, JC5, JC6, JC7, Bonas, Grosse etc.
• Saving the complete process into the EAT Running Chain, which means an optimum archiving of all information related to the design and allows you a fast modification at any time

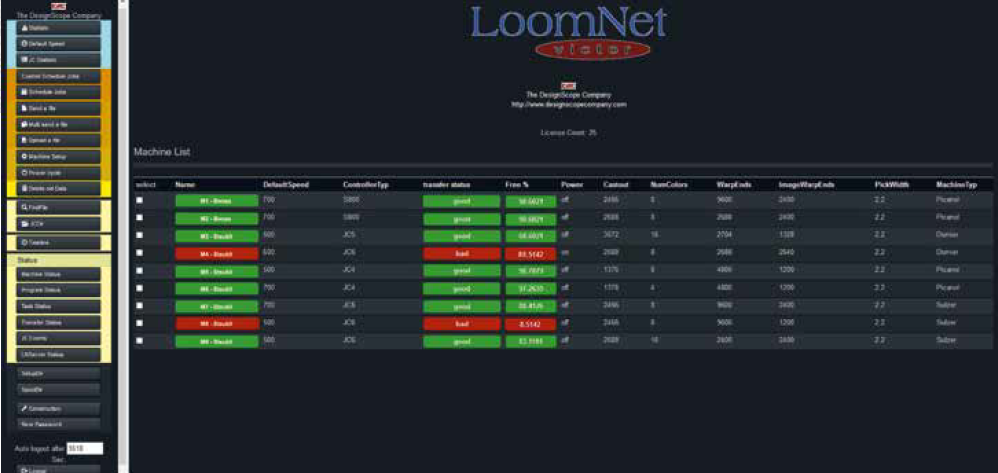

LOOMNET VICTOR NETWORK SYSTEM

LoomNet victor is a server softwaresystem created by EAT. It serves the transfer of JC files to Stäubli and Bonas controllers.

• Minimum access times
• Individual configuration of LoomNet by the user
• Easy organisation of your production related to weavers, shifts, machines etc.
• Access can be granted on different levels with different restrictions for single users or user groups
• The system will combine JC files and the respective loom setups immediately upon input and before transfer
• Individual JC-Controller dialog for Stäubli
• Horizontal name weaving for labeling the woven orders
• Interfacing for PPS/ERP systems
• Statistics for evaluation of controller-registered machine downtimes

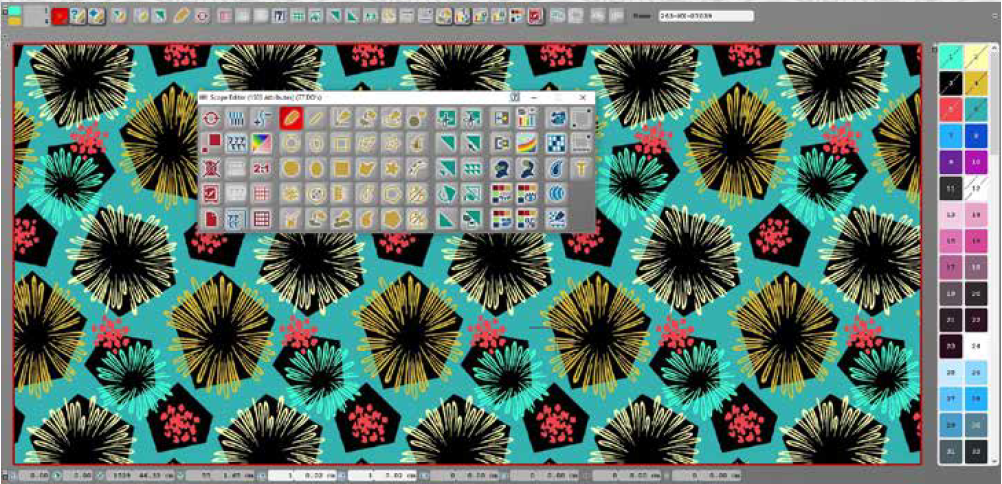

SCOPE EDITOR FOR DESIGNING AND EDITING YOUR SKETCHES

The DesignScope victor new Scope Editor is now available in a new style and is therefore following the trend of the current software on the market. The existing and new functionalities of the editor will help you to implement your ideas and designs in an optimum way.

• Repeat function with a directly visible result
• Existing and new functionalities in a new style
• Optimum colouring in the colour system you prefer, like RGB, LAB, HLS, etc .
• With the EAT axis of reflection, objects may be reflected on any given axis in a defined area and on a defined number of sections
• The new mask function helps to find the same areas in the pattern and change them in one step for all marked areas. This can be stored in a parameter so that the next time this process can be run automatically
