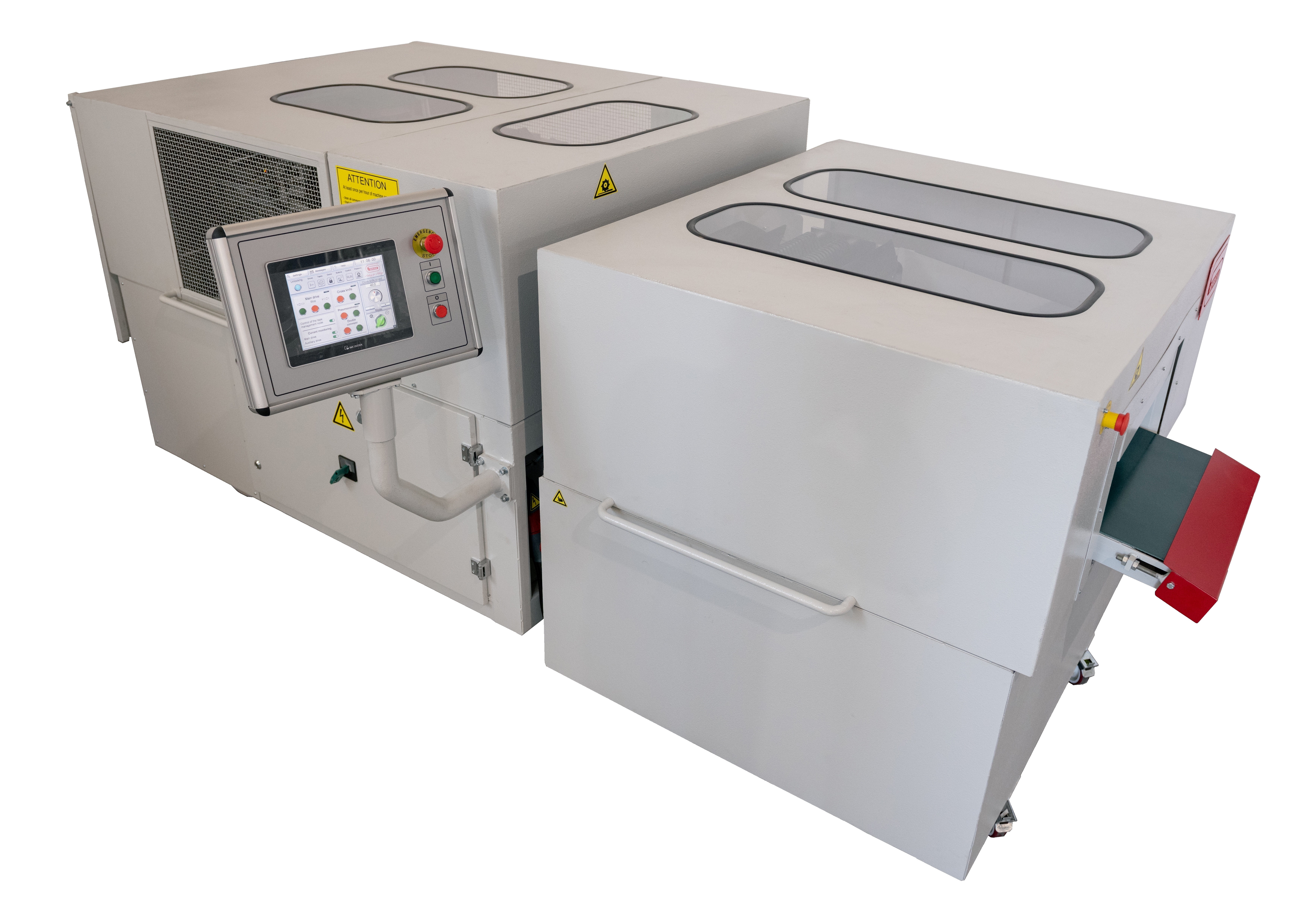

The TG500HR foam-cutter is designed to produce foam sticks of rectangular shape. Since the
operating principle is based on cutting as opposed to shredding, the machine hardly
generates any dust, thus improving the quality of the final product and eliminating the need
for expensive dust-aspirator systems.

This machine is available in two configurations. The basic TG500H module is suitable for
processing pre-cut foam sheets of regular shape. The foam sticks obtained through this
process are perfectly even in shape.

By adding a supplementary module (TG500HR version) the machine can also process foam
pieces of irregular shape (i.e., production waste). Both modules can work with virtually any
type of commercial soft-foams.

The sticks have a standard width of 4mm. The length of the sticks can be adjusted between
8-25mm.

All machine operations are controlled through a 10” touchscreen that gives an immediate
and clear overview of the machine’s status.

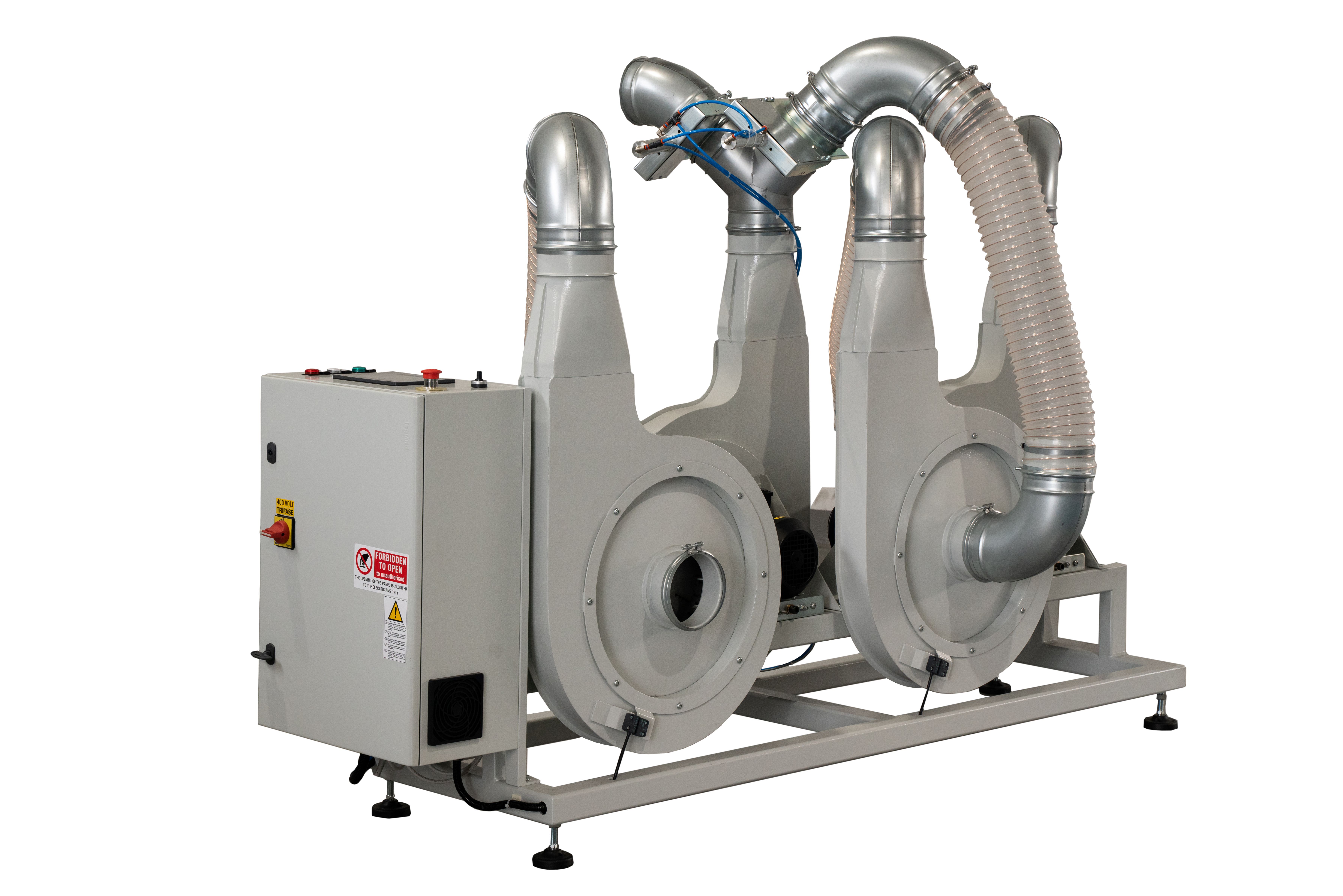

Transport of the foam sticks at the exit of the machine to a silo, blender or bag-filling
installation, is handled by a powerful ASR3 blower.


The simple and robust construction reduces maintenance to a minimum, while ensuring
long and perfect operation.

The production capacity of the machine can reach up to 500 kg/h. The TG500R module can
handle pieces with a maximum cross-section of 55x20cm. Total power absorption of both
modules stands at 27 kw/h. The TG500 module can also process pieces of irregular size,
provided that they are not thicker than 7cm.

See more machines on www.agerussi.com or contact export@agerussi.com for inquiries.
