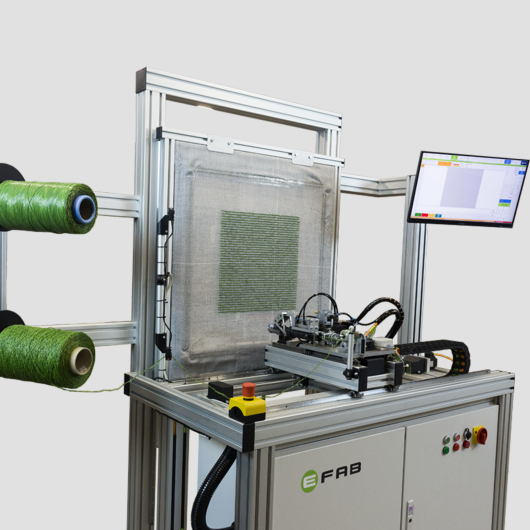

eSampler: Sample Tufting Machine
Beschreibung
eSampler is a flexible sample tufting machine designed for preparing tufted samples in a few minutes from a single bobbin of yarn. It is a flexible tool for preparing artificial grass or tufted carpets samples in any desired qualities. eSampler is an unique tool for yarn producers.
Fast and flexible sampling machineeSampler is equipped with our legendary pneumatic tufting head with guillotine cutting principle which is perfect for a wide range of yarns including Wool, Viscose, Polyester, Fancy yarns, Nylon, Linen, Cotton, Polypropylene, Polyethylene, Polyamide or their blends.
Changing the tufting parameters like stitch rate, gauge or cut/loop pile can be done in a few seconds through the eHMI software. Also there is no time consuming mechanical adjustments required for changing the pile height.
Samples will be tufted on the removable vertical frame. It means that the backing fabric of tufted samples will be kept under the tension for finishing and back coating.
Technical Features
- Up to 1200 stitches/min
- Gauge: 3–30 mm
- Stitch rate: 100–500 stitches/m
- Pile types: U-tuft, J-tuft, loop
- 3D pile-height capability
- Removable frame for easy finishing
- Compatible with eDesigner via BRT files
